What is a Frequency conversion discharger? Introduction to the principle of unloader structure

Frequency conversion dischargeris the main equipment for conveying bulk materials.，is developed and improved by hyde powder。The following is to introduce the Frequency conversion discharger:

1、Brief introduction of Frequency conversion discharger

Frequency conversion dischargeris an important part of a material handling system.，it can be used in mine, dock, mine, chemical industry, building materials cement and other industries，it is mainly composed of rotor and shell, motor reducing gear, impeller, protective devices (such as sprockets, sprocket covers, etc.) and sealing element，it is an ideal choice for customers to buy Frequency conversion discharger。

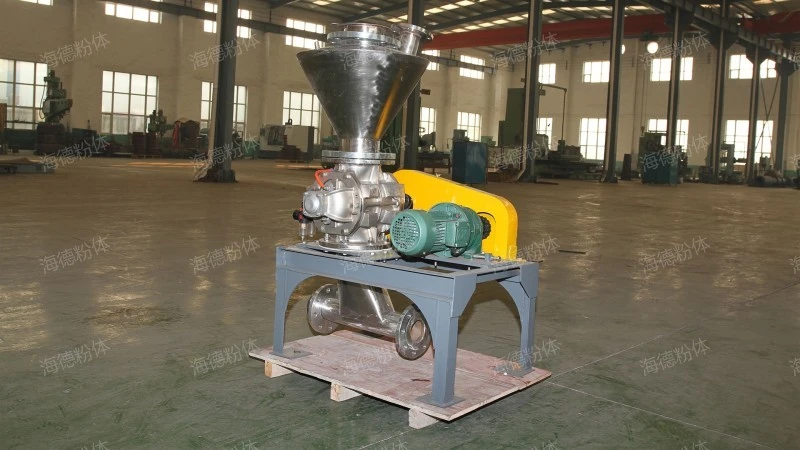

Frequency conversion discharger

2、Frequency conversion discharger structure

The Frequency conversion discharger structure is introduced as follows:

1. impeller

Impeller is the key part of the Frequency conversion discharger to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

2. Motor and transmission device

The motor provides power for the Frequency conversion discharger, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

3. Rotor and shell

The rotor is the core component of the Frequency conversion discharger, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

4. sealing element

Seals are used to ensure the sealing performance of the Frequency conversion discharger in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

5. Equalizing exhaust port

The side of the Frequency conversion discharger body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

Frequency conversion discharger

3、Working principle of Frequency conversion discharger

Frequency conversion dischargerThrough the rotation of the rotor with several blades in the cylindrical casing, the materials are uniformly and continuously transported from the upper hopper to the lower part to realize the function of feeding or discharging. In the pneumatic conveying system, the Frequency conversion discharger is one of the key components, which can supply materials evenly into the clinker pipe. At the same time, in the separation and dust collection part of the system, it also has the functions of unloader and air lock.。

Frequency conversion discharger

4、Frequency conversion discharger HD real shot

Frequency conversion discharger manufacturer, the product High definition shooting. In order to facilitate new and old customers to find satisfactory the product looks beautiful. more quickly, the following high-definition pictures are provided for reference.。

Frequency conversion discharger

Note: All the pictures in this article were taken by hyde powder manufacturer.。

5、Frequency conversion discharger HD real shot

On-site aerial photography of Frequency conversion discharger。

Frequency conversion discharger

As you can see from the live video.，hyde powder the advantage is Impeller, bushing and other key components are made of high-quality wear-resistant materials, which can withstand the friction and wear during material transportation and prolong the service life of the equipment.、The structural design makes its maintenance relatively simple, and it is easy to carry out daily inspection and troubleshooting.、The design of special sealing structure enables the Frequency conversion discharger to maintain high sealing performance during transportation, reduce material leakage and improve transportation efficiency.、According to users' needs, special motors, such as explosion-proof, frequency modulation, speed regulation and marine motors, are configured to meet users' special requirements. The material of the blade can also be specially processed according to the needs of users.、Impeller, bushing and other key components are made of high-quality wear-resistant materials, which can withstand the friction and wear during material transportation and prolong the service life of the equipment.。

6、High-definition map of hyde workshop

The finished products of the Frequency conversion discharger factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

hyde

The finished products of the Frequency conversion discharger factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

Frequency conversion dischargerIt is suitable for conveying powdery and granular materials and can meet the processing requirements of different materials.、With overload protection function, it can automatically stop the machine in case of abnormal situation to avoid equipment damage.、The bearing and gear box are far away from the valve body to avoid the influence of high temperature dust. At the same time, the front and rear end covers have good sealing performance, which effectively prevents dust from leaking out and prolongs the service life of moving parts and lubrication systems.、With automatic locking mechanism and electric push rod with two-way insurance system, the work is reliable, stable and flexible.、By adjusting the parameters such as Frequency conversion discharger speed or blade angle, the conveying capacity of materials can be flexibly adjusted to meet different technological requirements.，is a common Frequency conversion discharger，good sealing performance,handsome appearance,shockproof,strong reliability,easy maintenance。
