What is a Square rotating feeder? Introduction to the advantages and characteristics of the Feeder

Square rotating feederas an important bulk material conveying equipment，features include easy maintenance, handsome appearance, low noise, shockproof and good sealing performance，It is mostly used in material handling, ensure air tightness of the system, continuously and uniformly feed or discharge., prevent gas or dust leakage, ensure air tightness of the system, blowing-in and so on，is a common Square rotating feeder，the product looks beautiful.。The following is to introduce the Square rotating feeder:

1、Brief introduction of Square rotating feeder

Square rotating feederis the main equipment for dust removal equipment, ash discharge, air supply and other equipment feeding.，be loved by our customers.。

Square rotating feeder

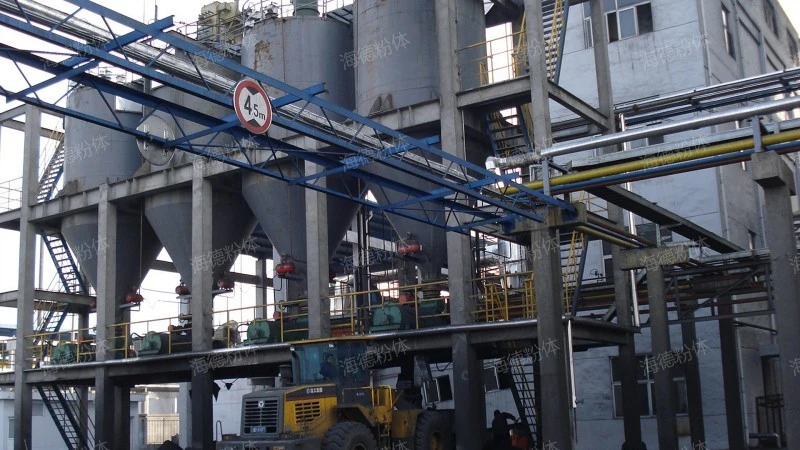

2、Square rotating feeder field real shot

Provide a variety of specifications and models of Square rotating feeder, high-definition picture list.。

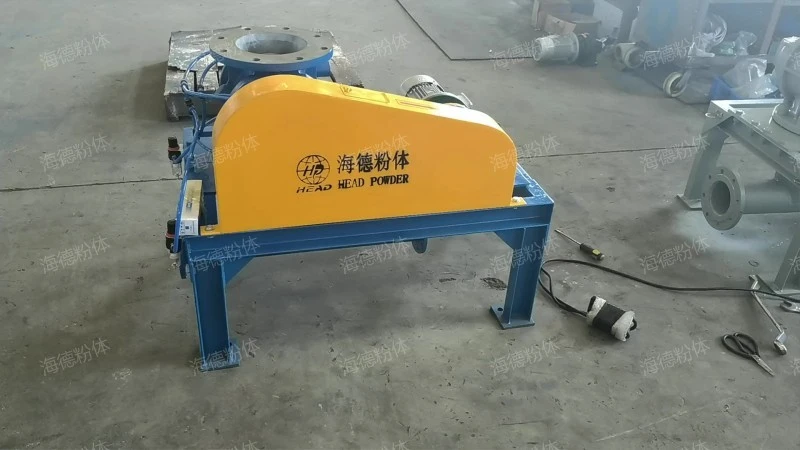

Square rotating feeder

Note: All the pictures in this article were taken by hyde manufacturer.。

3、Square rotating feeder principle

Square rotating feederthe principle is simple.The motor reducer drives the impeller to rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the impellers. With the rotation of the impellers, the materials are transported to the lower part and discharged. At the same time, the exhaust port exhausts the high-pressure gas generated by the rotation of the impeller, which reduces the phenomenon of gas ejection and ensures the continuity and stability of material transportation.，the main structure includes equalizing exhaust port, vent, equalizing exhaust port, motor and transmission device, motor reducing gear and so on。

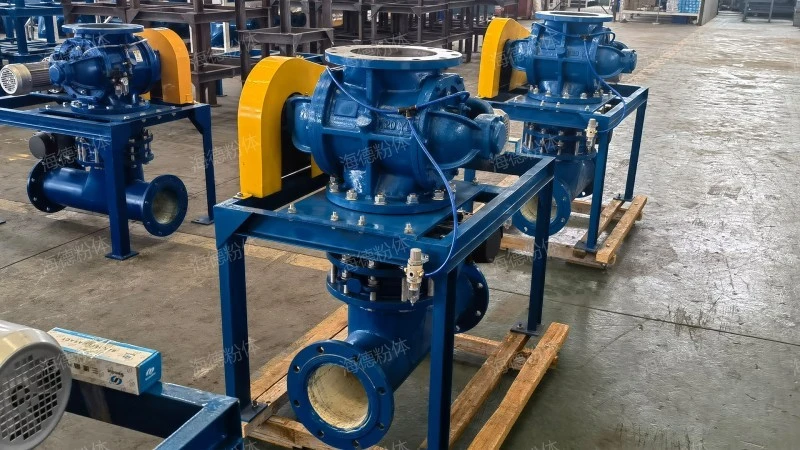

Square rotating feeder

4、Square rotating feeder advantage

The advantages of Square rotating feeder are as follows:

1. Strong overload capacity

Low impact inertia force, suitable for frequent starting and reverse rotation.

2. Multi-material handling

It is suitable for conveying powdery and granular materials and can meet the processing requirements of different materials.

3. Anti-leakage design

The bearing and gear box are far away from the valve body to avoid the influence of high temperature dust. At the same time, the front and rear end covers have good sealing performance, which effectively prevents dust from leaking out and prolongs the service life of moving parts and lubrication systems.

4. Easy maintenance

The structural design of the Square rotating feeder makes its maintenance relatively simple, and it is easy to carry out daily inspection and troubleshooting.

5. Continuous feeding

It can evenly and continuously supply materials into the clinker pipe, ensuring the stability and continuity of material transportation.

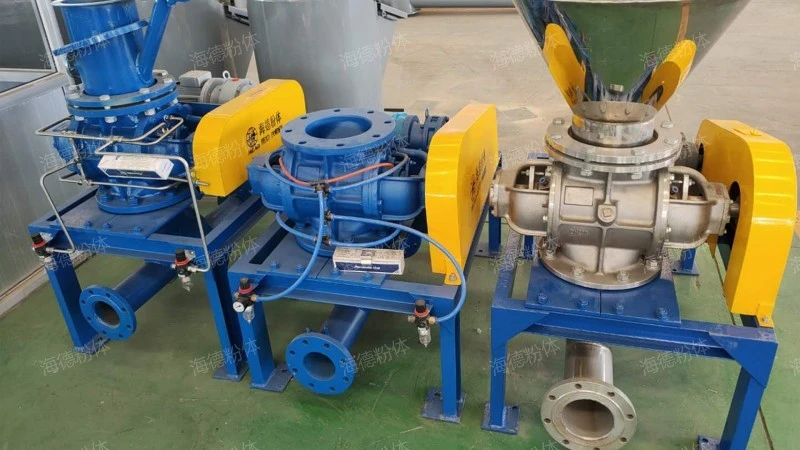

Square rotating feeder

5、Square rotating feeder structure

The Square rotating feeder structure is introduced as follows:

1. Equalizing exhaust port

The side of the Square rotating feeder body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

2. Rotor and shell

The rotor is the core component of the Square rotating feeder, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

3. Motor and transmission device

The motor provides power for the Square rotating feeder, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

4. impeller

Impeller is the key part of the Square rotating feeder to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

5. sealing element

Seals are used to ensure the sealing performance of the Square rotating feeder in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

Square rotating feeder

6、Square rotating feeder function

Square rotating feedermultifunctional, with functions such as prevent gas or dust leakage, material handling, equipment feeding, dust removal equipment discharges dust. and ensure air tightness of the system，It can be used for continuously and uniformly feed or discharge., dust removal equipment discharges dust., equipment feeding, material handling, dust removal equipment discharges dust., continuously and uniformly feed or discharge. and so on，is designed by hyde with advanced technology。

Square rotating feeder

Square rotating feederthe product looks atmospheric.，is a device for discharging materials, which discharges materials from containers by specific mechanical or pneumatic means.，is a kind of high quality and low price Square rotating feeder。
