Introduction to Downward pneumatic conveying bin pump and bin pump structure principle

Downward pneumatic conveying bin pumpis a professional equipment adopting positive pressure pneumatic conveying mode.。The following is to introduce the Downward pneumatic conveying bin pump:

1、Brief introduction of Downward pneumatic conveying bin pump

Downward pneumatic conveying bin pumpis a kind of equipment used for pneumatic conveying.，is a common Downward pneumatic conveying bin pump。

Downward pneumatic conveying bin pump

2、Structural characteristics of Downward pneumatic conveying bin pump

The Downward pneumatic conveying bin pump structure is introduced as follows:

1. pump body

The core part of the Downward pneumatic conveying bin pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

2. pump body

The core part of the Downward pneumatic conveying bin pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

3. level-sensing device

Used to detect the material level in the pump body. Common level gauges include capacitive level gauges and ultrasonic level gauges. Through the material level gauge, the feeding amount can be accurately controlled to avoid the situation that the pump body is too full or the material is insufficient.

4. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

5. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

Downward pneumatic conveying bin pump

3、Working principle of Downward pneumatic conveying bin pump

The principle of Downward pneumatic conveying bin pump is introduced as follows:

1. Feeding stage

The feed valve of the Downward pneumatic conveying bin pump is opened, and the material enters the pump body of the Downward pneumatic conveying bin pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

2. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Downward pneumatic conveying bin pump system can enter the next feeding-conveying-discharging cycle.

3. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

4. Feeding stage

The feed valve of the Downward pneumatic conveying bin pump is opened, and the material enters the pump body of the Downward pneumatic conveying bin pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

5. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Downward pneumatic conveying bin pump system can enter the next feeding-conveying-discharging cycle.

Downward pneumatic conveying bin pump

4、Downward pneumatic conveying bin pump HD picture

The styles and designs of Downward pneumatic conveying bin pump are diverse, and the specifications and models can be tailored according to users' needs, providing high-definition drawings for our customers' reference.。

Downward pneumatic conveying bin pump

Note: All the pictures in this article were taken by hyde powder manufacturer.。

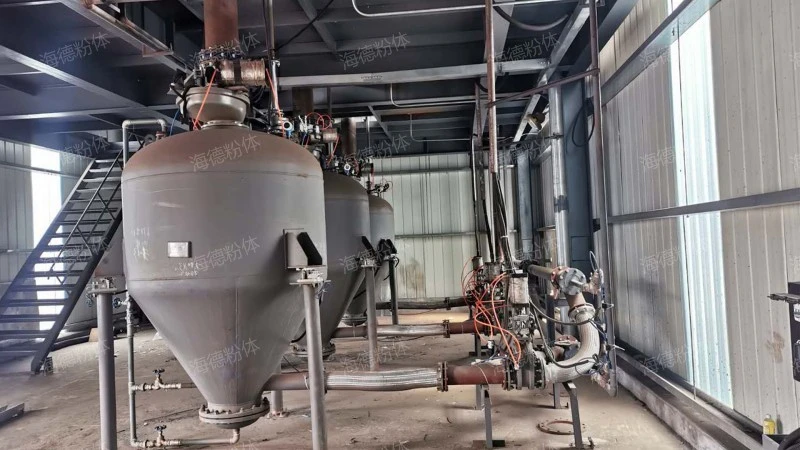

5、Downward pneumatic conveying bin pump HD real shot

Speak directly with facts on the spot。

Downward pneumatic conveying bin pump

As you can see from the live video.，hyde it is widely used in food service industry, grain processing, food service industry, chemical lines and chemical lines。

Downward pneumatic conveying bin pumpis a Downward pneumatic conveying bin pump，as an efficient pneumatic conveying equipment，The operation mode is fully enclosed and automatic, and it can also be operated manually.、The unloading mode is flexible, and it can be unloaded at a single point or at multiple points.、Suitable for a variety of material types, such as powder, granular and other loose materials. The transportation distance is long, which can meet the transportation needs of different distances and different terrains. Downward pneumatic conveying bin pumps of different models and specifications can be customized according to specific needs to adapt to different application scenarios.、It can be combined with other conveying equipment (such as pipelines, valves, etc.) to form a complete conveying system. The conveying mode is flexible and diverse, and it can be unloaded at a single point or at multiple points to meet different conveying requirements.、Made of high-quality materials and advanced technology, it has high reliability and durability. In the harsh working environment, the Downward pneumatic conveying bin pump can still maintain good working performance, ensuring the continuity and stability of material transportation.。
