Introduction to Vertical silo pneumatic conveying pump and bin pump working principle

Vertical silo pneumatic conveying pumpalso called bin pump, it is a kind of positive pressure pneumatic conveying equipment.，the product looks atmospheric.，it is mainly composed of intake valve, bleeder valve, air evacuation valve, control system and fluidizer。The following is to introduce the Vertical silo pneumatic conveying pump:

1、Brief introduction of Vertical silo pneumatic conveying pump

Vertical silo pneumatic conveying pumpis a kind of equipment used for pneumatic conveying, which is mainly used to convey powdery or granular materials to designated places through airflow.。

Vertical silo pneumatic conveying pump

2、Vertical silo pneumatic conveying pump principle

Vertical silo pneumatic conveying pumpthe principle is simple.When the material enters the pump body and is full, it is gasified to make the material form a fluidized state and smoothly enter the mixing chamber. At the same time, the compressed air is ejected at high speed through the jet nozzle and fully mixed with the fluid material. The high-speed airflow drives the material to pass through a specific pipeline, which converts the kinetic energy of compressed air into pressure energy, and at the same time, the air and the material are mixed again, so as to improve the speed of the material and make it move forward along the conveying pipeline, thus achieving the purpose of conveying powdery materials.。

Vertical silo pneumatic conveying pump

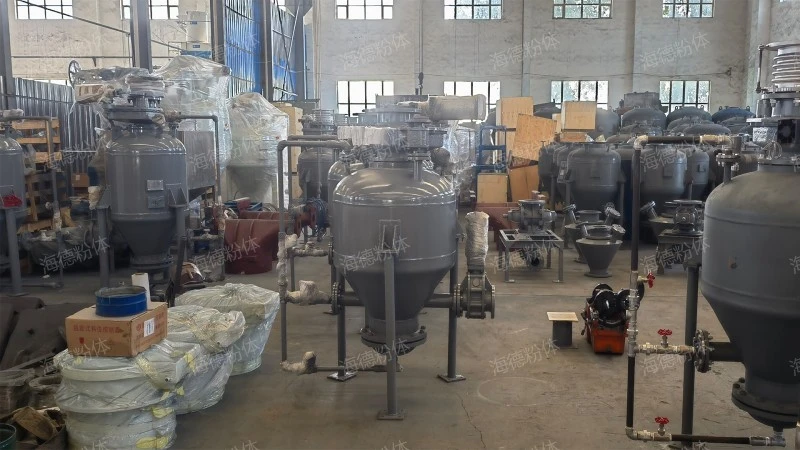

3、Vertical silo pneumatic conveying pump picture

hyde powder Vertical silo pneumatic conveying pump complete specifications and models, new and old customers can choose at will, and high-definition pictures are available for customers' reference.。

Vertical silo pneumatic conveying pump

Note: All the pictures in this article were taken by hyde powder manufacturer.。

4、Vertical silo pneumatic conveying pump video live broadcast

The following is the live video of Vertical silo pneumatic conveying pump designed and produced by hyde for users, from which we can see the Made of high-quality materials and advanced technology, it has high reliability and durability. In the harsh working environment, the Vertical silo pneumatic conveying pump can still maintain good working performance, ensuring the continuity and stability of material transportation.、Adopt fully sealed and pollution-free transportation mode, which meets the requirements of environmental protection. During transportation, materials will not leak, thus avoiding environmental pollution and material waste. Compared with other transportation modes, the energy consumption of the Vertical silo pneumatic conveying pump is relatively low, which is helpful for energy saving and emission reduction.、The operation is simple and convenient, and usually adopts automatic control mode, which is suitable for the actual needs of engineering. Automatic control can be realized by programming, which reduces manual operation and labor intensity.、The unloading mode is flexible, and it can be unloaded at a single point or at multiple points.、It can be combined with other conveying equipment (such as pipelines, valves, etc.) to form a complete conveying system. The conveying mode is flexible and diverse, and it can be unloaded at a single point or at multiple points to meet different conveying requirements. of Vertical silo pneumatic conveying pump.。

Vertical silo pneumatic conveying pump

As you can see from the live video.，hyde usually used in Cement industry, food service industry, chemical lines, electricity industry, grain processing and other fields。

5、Working principle of Vertical silo pneumatic conveying pump

The principle of Vertical silo pneumatic conveying pump is introduced as follows:

1. Feeding stage

The feed valve of the Vertical silo pneumatic conveying pump is opened, and the material enters the pump body of the Vertical silo pneumatic conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

2. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

3. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

4. Feeding stage

The feed valve of the Vertical silo pneumatic conveying pump is opened, and the material enters the pump body of the Vertical silo pneumatic conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

5. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Vertical silo pneumatic conveying pump system can enter the next feeding-conveying-discharging cycle.

Vertical silo pneumatic conveying pump

Vertical silo pneumatic conveying pumpthe product looks beautiful.，It is mostly used in pneumatic transport, powder conveying, environmental protection and dust removal, pneumatic ash conveying, material handling, particle transport and so on，the main features are pollution-free transportation, high reliability, large conveying capacity, simple operation and flexible layout。
