What is a Carbon steel pneumatic conveying pump? Introduction to the principle of bin pump structure

Carbon steel pneumatic conveying pumpalso known as sending tank, pneumatic conveying pump or bin pump.，widely used in chemical lines, Building materials industry, Metallurgical industry, Cement industry, chemical lines and other fields，The unloading mode is flexible, and it can be unloaded at a single point or at multiple points.、The operation mode is fully enclosed and automatic, and it can also be operated manually.、Adopt fully sealed and pollution-free transportation mode, which meets the requirements of environmental protection. During transportation, materials will not leak, thus avoiding environmental pollution and material waste. Compared with other transportation modes, the energy consumption of the Carbon steel pneumatic conveying pump is relatively low, which is helpful for energy saving and emission reduction.、Compact structure, easy installation and maintenance. The wear and tear of all parts can be checked regularly, and the damaged parts can be replaced in time to ensure the normal operation of the equipment. The maintenance cost is relatively low, which is helpful to improve the economy and service life of the equipment.、It can be combined with other conveying equipment (such as pipelines, valves, etc.) to form a complete conveying system. The conveying mode is flexible and diverse, and it can be unloaded at a single point or at multiple points to meet different conveying requirements.，The price is relatively low.，reliable quality。The following is to introduce the Carbon steel pneumatic conveying pump:

1、Brief introduction of Carbon steel pneumatic conveying pump

Carbon steel pneumatic conveying pumpas an efficient pneumatic conveying equipment。

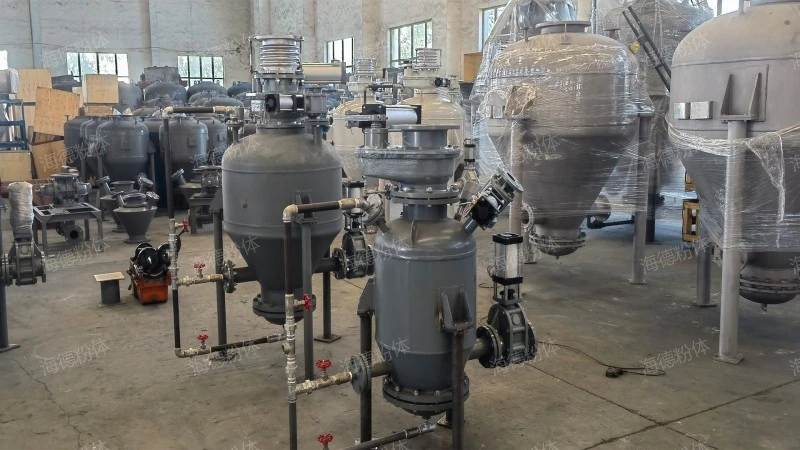

Carbon steel pneumatic conveying pump

2、Carbon steel pneumatic conveying pump characteristics

Carbon steel pneumatic conveying pumpfeatures include simple operation, high reliability, flexible layout, simple operation and omniseal，Mainly used forpneumatic ash conveying,pneumatic transport,particle transport,material handling andpneumatic ash conveying。

Carbon steel pneumatic conveying pump

3、Advantages of Carbon steel pneumatic conveying pump principle

The principle of Carbon steel pneumatic conveying pump is introduced as follows:

1. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

2. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Carbon steel pneumatic conveying pump system can enter the next feeding-conveying-discharging cycle.

3. Feeding stage

The feed valve of the Carbon steel pneumatic conveying pump is opened, and the material enters the pump body of the Carbon steel pneumatic conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

4. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

5. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Carbon steel pneumatic conveying pump system can enter the next feeding-conveying-discharging cycle.

Carbon steel pneumatic conveying pump

4、Carbon steel pneumatic conveying pump structure composition

The Carbon steel pneumatic conveying pump structure is introduced as follows:

1. pump body

The core part of the Carbon steel pneumatic conveying pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

2. pump body

The core part of the Carbon steel pneumatic conveying pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

3. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

4. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

5. level-sensing device

Used to detect the material level in the pump body. Common level gauges include capacitive level gauges and ultrasonic level gauges. Through the material level gauge, the feeding amount can be accurately controlled to avoid the situation that the pump body is too full or the material is insufficient.

Carbon steel pneumatic conveying pump

5、Advantages of Carbon steel pneumatic conveying pump principle

The principle of Carbon steel pneumatic conveying pump is introduced as follows:

1. Feeding stage

The feed valve of the Carbon steel pneumatic conveying pump is opened, and the material enters the pump body of the Carbon steel pneumatic conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

2. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

3. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Carbon steel pneumatic conveying pump system can enter the next feeding-conveying-discharging cycle.

4. Feeding stage

The feed valve of the Carbon steel pneumatic conveying pump is opened, and the material enters the pump body of the Carbon steel pneumatic conveying pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

5. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

Carbon steel pneumatic conveying pump

6、Carbon steel pneumatic conveying pump price

The Carbon steel pneumatic conveying pump price is introduced as follows:

1. Self quality

The condition of the product itself has a great influence on its price, and the cost of the product with excellent quality is higher, which will lead to the increase of the selling price of the product. Therefore, this is an important factor that causes the price fluctuation and change of the Carbon steel pneumatic conveying pump.

2. Different regions

The consumption level in different regions is different, which directly affects the equipment cost investment. Generally speaking, the higher the consumption level, the higher the cost of production equipment, and the higher the cost investment, the higher the price naturally.

3. manufacturing cost

When the Carbon steel pneumatic conveying pump is manufactured, the materials selected by different manufacturers will be different. Some manufacturers use high-quality materials, and the price will be relatively high, while some manufacturers use ordinary materials, and the price will be lower.

4. Product technology

The more advanced the technology, the higher the price will be, otherwise the equipment price will be low, and users must pay attention to whether their own technology meets the production requirements when purchasing equipment.

5. quality factor

The selling price of excellent quality products is also high, so users should also consider the quality and price of products comprehensively when purchasing products, so as to buy products with high cost performance.

Carbon steel pneumatic conveying pump

Carbon steel pneumatic conveying pumpthe main structure includes intake valve, pump body, control system, bleeder valve, fluidizer and so on，is a kind of equipment used for pneumatic conveying, which is mainly used to convey powdery or granular materials to designated places through airflow.，it has the functions of powder conveying, particle transport, pneumatic ash conveying, environmental protection and dust removal and pneumatic transport。
