Introduction to Carbon steel ash tank pneumatic conveying pump and AV pump working principle

Carbon steel ash tank pneumatic conveying pumpis a kind of material conveying equipment which uses the energy of air flow to continuously convey powdery and granular materials。The following is to introduce the Carbon steel ash tank pneumatic conveying pump:

1、Brief introduction of Carbon steel ash tank pneumatic conveying pump

Carbon steel ash tank pneumatic conveying pumpis a common equipment for pneumatic conveying，at work,Using the pressure difference generated by compressed air in the pipeline, the material is pushed to be transported along the pipeline at a speed lower than the suspension speed. This transportation mode avoids the complete mixing of materials and transmission media, reduces the risk of material wear and pipeline blockage, and allows a long transportation distance and moderate transportation capacity.，be loved by our customers.。

Carbon steel ash tank pneumatic conveying pump

2、Carbon steel ash tank pneumatic conveying pump characteristics

Carbon steel ash tank pneumatic conveying pumpit has the characteristics of wide applicability, high degree of automation, flexible installation, good ash-gas ratio and convenient maintenance，widely used in ferrous metallurgy, glass fibre, semiconductor, forge, metallurgy and other fields，The structural design is more advanced and reasonable.，the main structure includes intake pipe, electric cabinet, level-sensing device, electric cabinet, auxiliary blowing device and so on。

Carbon steel ash tank pneumatic conveying pump

3、Carbon steel ash tank pneumatic conveying pump structure

The Carbon steel ash tank pneumatic conveying pump has the following structure

1. level-sensing device

The material level gauge is usually installed on the feed bin to detect the material in the ash hopper. When the material reaches a certain height, the material level gauge will send a signal to the electric control box to trigger the operation of the Carbon steel ash tank pneumatic conveying pump.

2. Air control box

Each Carbon steel ash tank pneumatic conveying pump is equipped with an air control box to control the running state of the Carbon steel ash tank pneumatic conveying pump. The air control box controls the switch of the air inlet valve by receiving the signal from the electric control box, so as to realize the adjustment of the air pressure in the Carbon steel ash tank pneumatic conveying pump.

3. electric cabinet

The electric cabinet is the control center of the Carbon steel ash tank pneumatic conveying pump system, which is responsible for receiving signals from various sensors and controlling the operation of the Carbon steel ash tank pneumatic conveying pump according to the preset program. It usually has the function of programmable controller, and can realize accurate control of the Carbon steel ash tank pneumatic conveying pump system.

4. Ash conveying pipeline

Ash conveying pipeline is a pipeline system connecting the Carbon steel ash tank pneumatic conveying pump and the terminal ash storage. After being compressed in the Carbon steel ash tank pneumatic conveying pump, the materials are transported to the terminal ash storage for storage or further treatment through the ash conveying pipeline.

5. Ash tank body

As the main part of the Carbon steel ash tank pneumatic conveying pump, the ash chute body is used to receive and store the materials to be transported. It usually has the characteristics of wear resistance and corrosion resistance to meet the transportation needs of different materials.

Carbon steel ash tank pneumatic conveying pump

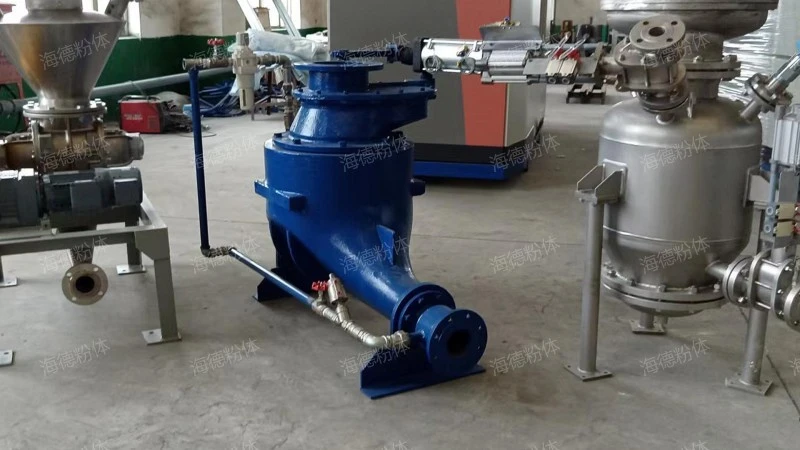

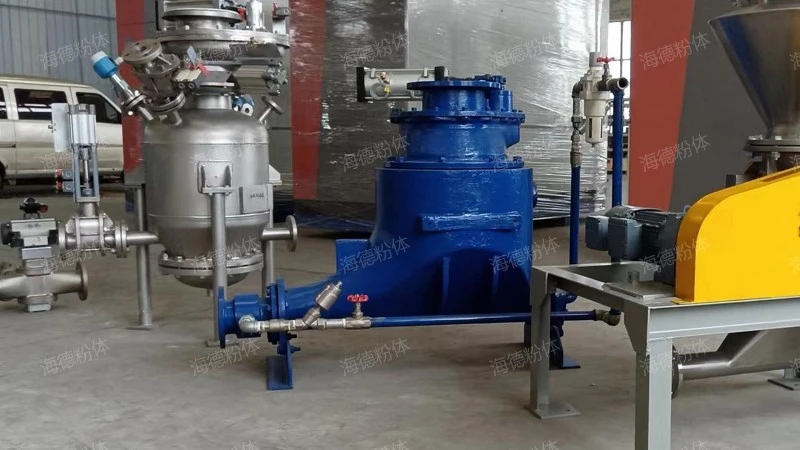

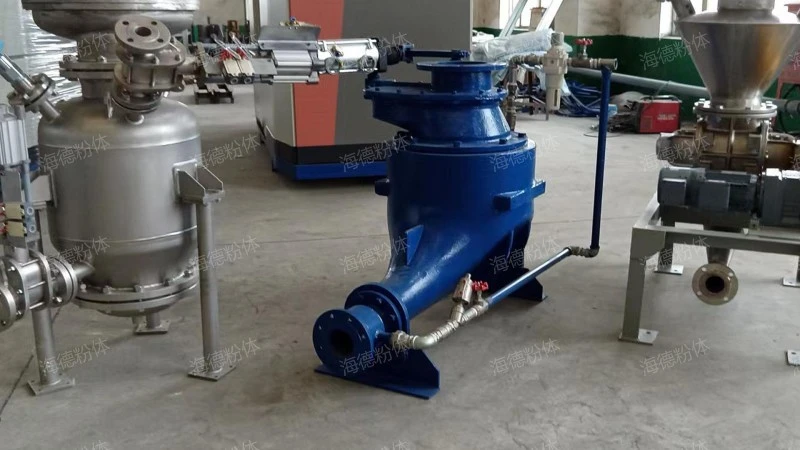

4、Carbon steel ash tank pneumatic conveying pump field real shot

The details of the Carbon steel ash tank pneumatic conveying pump are displayed in many directions, and the Carbon steel ash tank pneumatic conveying pump is beautiful and cost-effective.。

Carbon steel ash tank pneumatic conveying pump

Note: All the pictures in this article were taken by Hyde manufacturer.。

5、Structural advantages of Carbon steel ash tank pneumatic conveying pump

The Carbon steel ash tank pneumatic conveying pump structure is introduced as follows:

1. Air control box

Each Carbon steel ash tank pneumatic conveying pump is equipped with an air control box to control the running state of the Carbon steel ash tank pneumatic conveying pump. The air control box controls the switch of the air inlet valve by receiving the signal from the electric control box, so as to realize the adjustment of the air pressure in the Carbon steel ash tank pneumatic conveying pump.

2. Auxiliary blowing device

The auxiliary blowing device is used to blow the pipeline and the interior of the Carbon steel ash tank pneumatic conveying pump during the operation of the Carbon steel ash tank pneumatic conveying pump to prevent material blockage and deposition. This helps to keep the Carbon steel ash tank pneumatic conveying pump system running smoothly.

3. level-sensing device

The material level gauge is usually installed on the feed bin to detect the material in the ash hopper. When the material reaches a certain height, the material level gauge will send a signal to the electric control box to trigger the operation of the Carbon steel ash tank pneumatic conveying pump.

4. Intake pipe

The air intake pipe is a pipe system that provides compressed air to the Carbon steel ash tank pneumatic conveying pump. A group of Carbon steel ash tank pneumatic conveying pumps usually share one air intake pipe, but auxiliary air intake pipes can be added according to the number of Carbon steel ash tank pneumatic conveying pumps. The quality of the air inlet pipeline is required to ensure that the compressed air used for transportation reaches a certain pressure dew point.

5. Feed dome valve

The feeding dome valve is the key component to control the material entering the Carbon steel ash tank pneumatic conveying pump. It can be opened when needed, allowing materials to enter the Carbon steel ash tank pneumatic conveying pump, and closed when not needed to ensure that materials will not leak.

Carbon steel ash tank pneumatic conveying pump

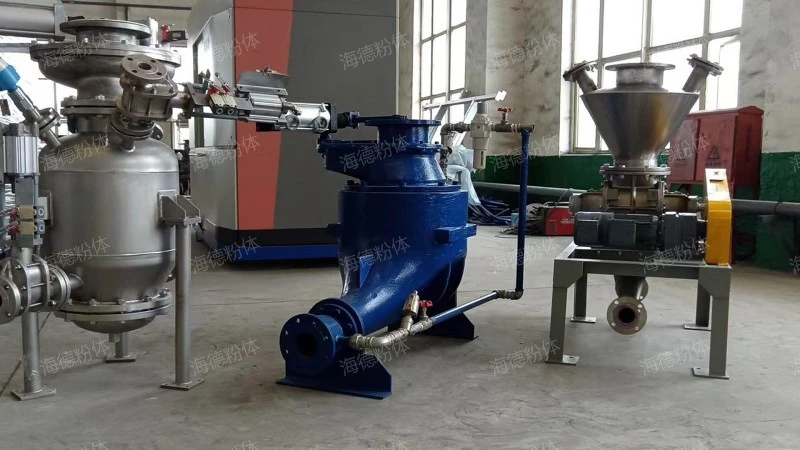

6、Hyde powder delivery site

The following is the live video of Carbon steel ash tank pneumatic conveying pump designed and produced by Hyde for users, from which we can see the Compact structure, low installation space, suitable for various venues、Can keep a good ash-gas ratio in the conveying process and improve the conveying efficiency、Because of its simple structure and relatively small maintenance workload, the maintenance cost is reduced、It is easy to realize automatic control, which can reduce manpower input and improve production efficiency. At the same time, its automatic control system can also ensure the stability and reliability of the conveying process、It is suitable for multi-point dry material transportation of most dust collectors of Hydeproduction-manufacturing的Carbon steel ash tank pneumatic conveying pump.。

Carbon steel ash tank pneumatic conveying pump

As you can see from the live video.Hyde powder the product looks beautiful.。

Carbon steel ash tank pneumatic conveying pumpit has the functions of save space, environmental protection and dust removal, reduce material loss, process control and material handling，is a common equipment for powder conveying，It can be used for environmental protection and dust removal, material handling, material handling, process control, save space, reduce material loss and so on。
